I. Use

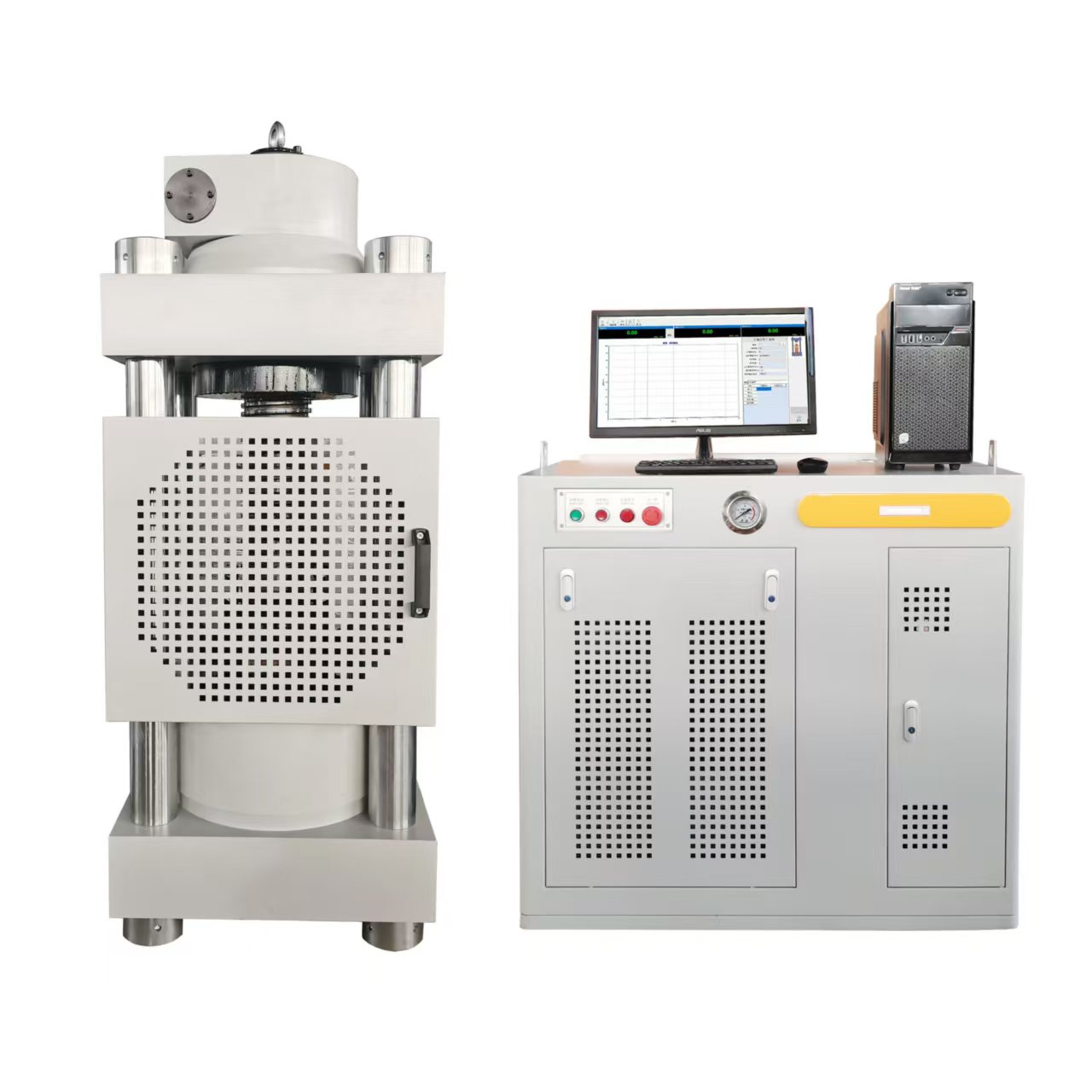

This machine is equipped with electric hydraulic loading, sensor force measurement, computer operation, and strength calculation. This testing machine complies with the national standard "Standard for Experimental Methods of Mechanical Properties of Ordinary Concrete", with automatic loading speed, loading mode program control, more accurate measurement results, and has loading speed, peak holding, and overload protection functions. It is architecture, building materials, highways and bridges, etc. Essential testing and inspection equipment for engineering units.

II. Parameter

1. Maximum range: 3000KN

2. Level: Level 1
3. Minimum resolution: 0.1KN
4. Maximum distance between pressure plates: Electric lead screw 350mm
5. Upper pressure plate specification: φ 300mm
6. Lower pressure plate specification: 360 * 300mm
7. Net spacing between columns: 335mm
8. Piston diameter x maximum stroke: φ 300mm x 80mm
9. Whole machine power: 1.5KW (oil pump motor 1.1KW)
10. Input power supply: AC380V ± 10V/50Hz
11. Dimensions: 1060 × 680 × 1480mm

12. Whole machine weight: 1225Kg
