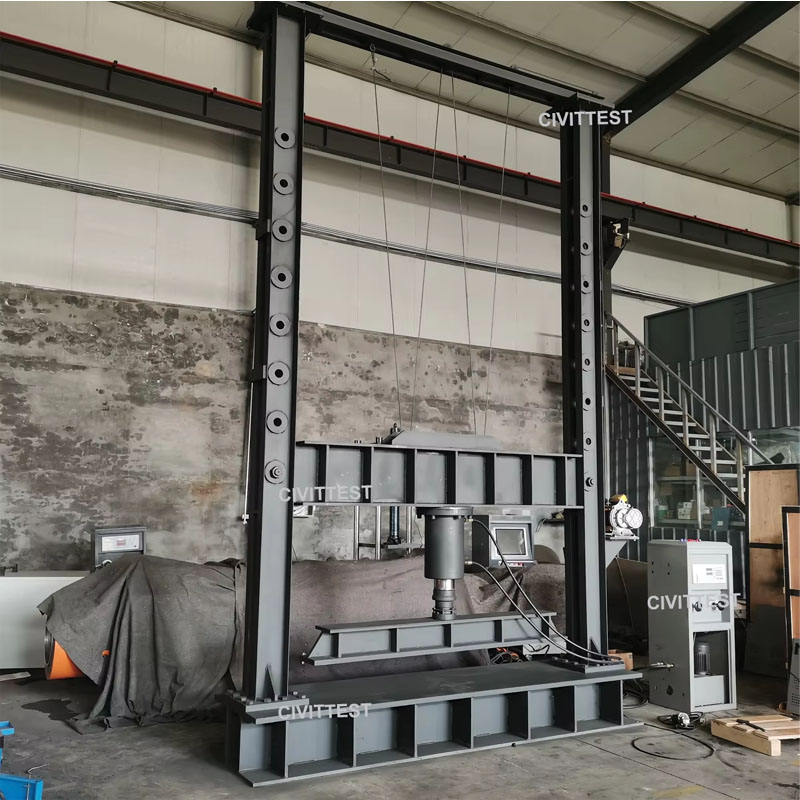

Concrete Pipe Flexural Testing Machine 1000KN/600KN

1. Maximum pressure: 1000KN
2. The distance between the columns: 2000mm (can complete the pressure test of three levels of 100-1800mm)
3. Test space: 2400×3100mm
4. Crossbeam adjustment method: electric screw (electric control button, free adjustment)
5. Adjustment range of beam: 300mm～2100mm
6. Moving speed of beam: 100mm/min
7. Force value accuracy: level 1 (better than ±1% of indicated value)
10. Crack load is automatically identified and recorded, and damage load is automatically recorded.
11. The percentage of reaching the national standard is automatically calculated and the data is issued.
12. With overload protection function, the power value is 2% of the full-scale automatic shutdown and power off function.
13. Piston stroke: 0-500mm
14. Upper support beam: 2000mm
15. Support length of hardwood: 1000+1000=2000mm
16. Hardwood support spacing: adjustable (turntable type, convenient adjustment)
17. Hardwood support fillet: R=12.5mm
18. Loading method: electro-hydraulic.
19. Load control method:
20. Power supply: 380V±10%, 220V±10%, 50HZ
21. Weight of the whole machine: 5000Kg
