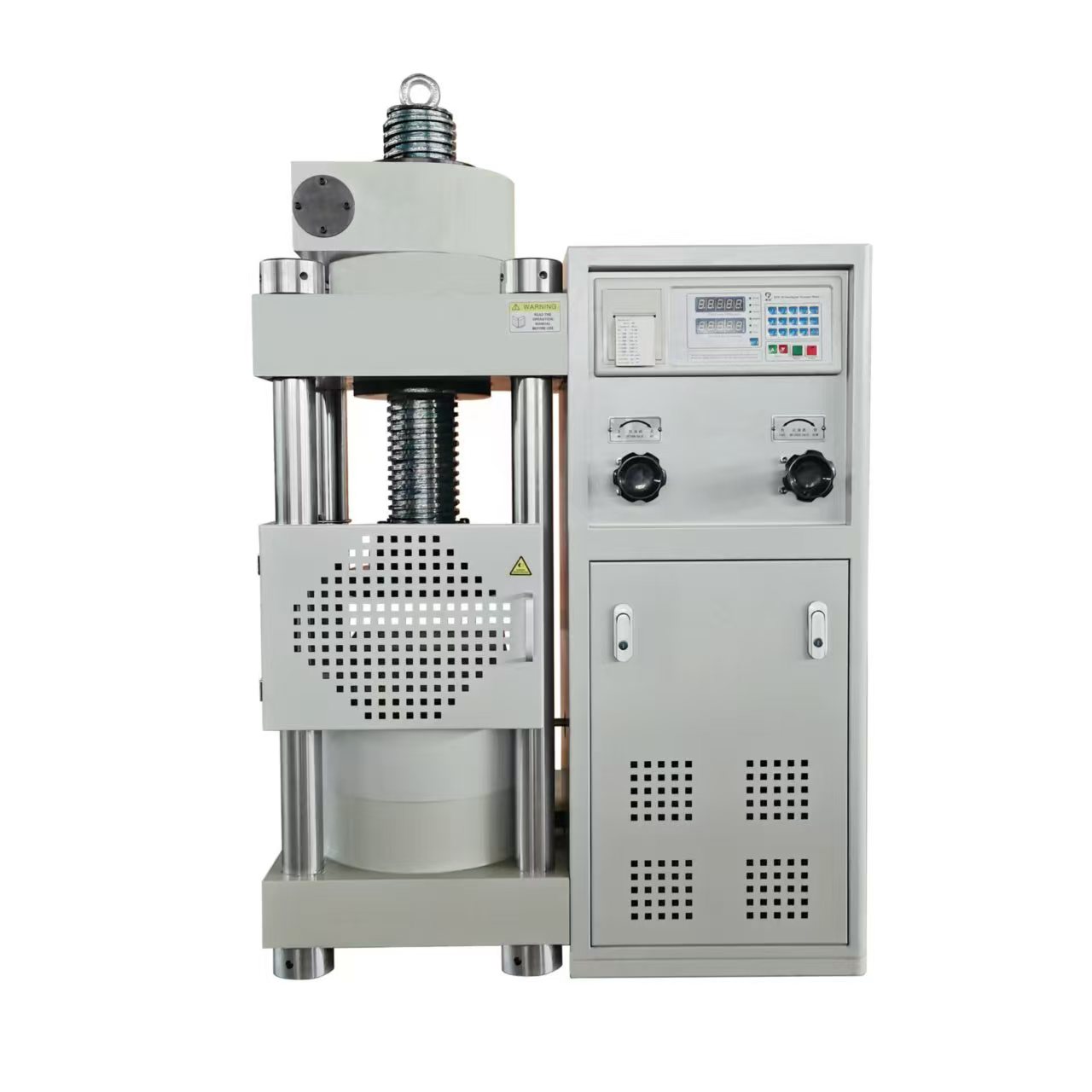

Digital Compression Testing Machine

(Automatic Screw Post Moving, Safety Door)

CT-DA2000/3000

It is suitable for the compressive strength test of building materials such as concrete, cement, airbrick, fire proofing tile, engineering ceramics and building stone.

Automatic screw post moving and equip safety door.

1. Maximum range: 2000KN
2. Level: Level 1
3. Minimum resolution: 0.1KN
4. Maximum distance between pressure plates: 320mm
5. Size of upper/lower pressure plate: φ 240mm, 250 * 350mm
6. Piston diameter x maximum stroke: φ 250mm x 80mm
7. Motor power: 0.75KW
8. Input voltage: AC220V ± 10V/50Hz
9. Dimensions: 910 × 460 × 1320mm
