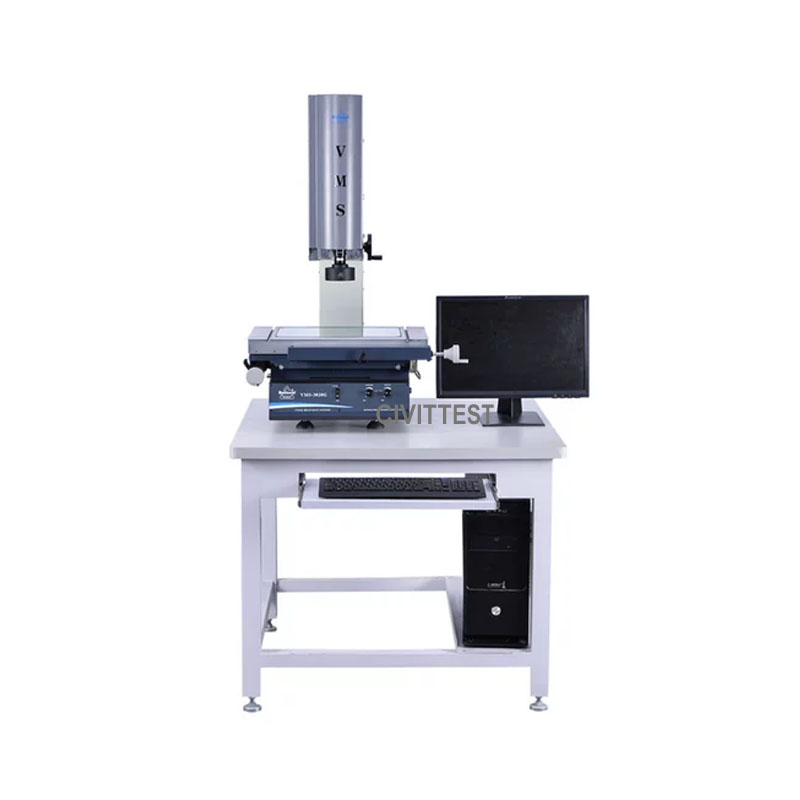

Calibrate sieve in small size 0.02mm to 2mm

1. Product features:
 1. Various forms of light sources ensure meeting diverse measurement requirements;
 2. Various data processing, display, input and output functions;
 3. The workpiece straightening function is very practical;
 4. Patented laser pointer technology facilitates focusing and positioning;
 5. The foot switch cooperates with the software to make the operation easier.
 2. Technical specifications:
 2. Metal table size (mm) 500×330
 3. Glass table size (mm) 350×250
 4. Movement stroke (mm) 300×200
 5. Z-axis lifting stroke (mm) 150 (up to 400 for special order)
 6. X, Y, Z digital display resolution: 0.5μm
 7. X, Y coordinate indication error: (2.5+L/100) μm (L is the measured length,
 Unit: mm)
 8. Color Gigabit Network Camera
 9. Zoom lens magnification: 0.58X~7.5X
 10. Video magnification: 27.4~351.3X (24" monitor)
 11. Object field of view: 14mm~1.4mm
 12. Both surface light source and transmitted light source use LED, and the brightness is adjustable.
