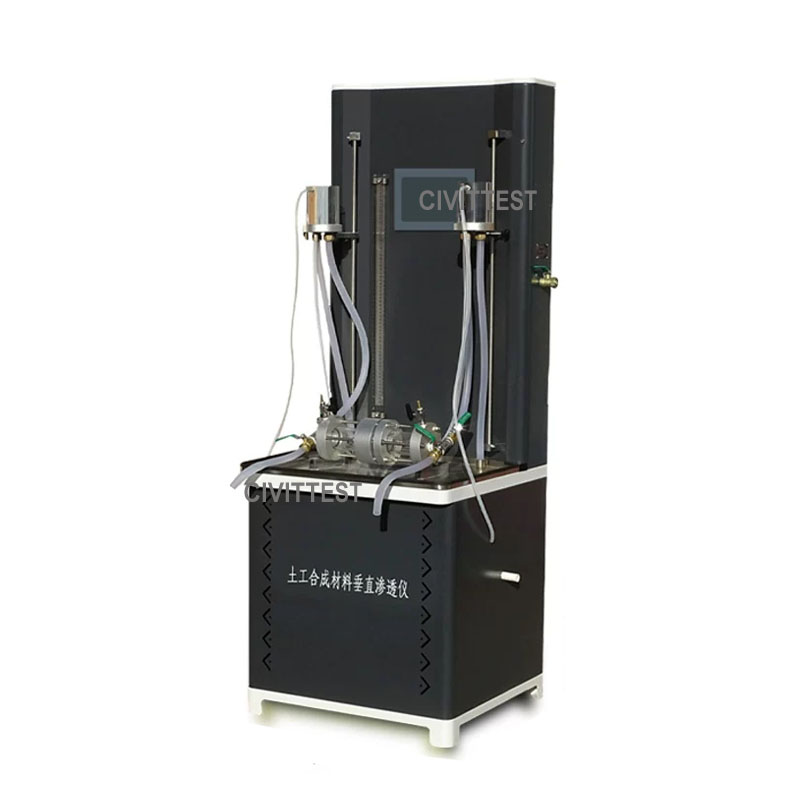

Geosynthetic Geotexitiles Vertical Permeability Testing Apparatus T01

It is suitable for testing the vertical permeability of various geotextiles and composite fabrics with water permeability under constant water head.
 Features:
 1. 8-inch touch screen operation, temperature accurate to 0.1℃, easy to operate.
 2. The aviation aluminum clamp is resistant to oxidation and fastened.
 3. Equipped with special test software, automatic timing, automatic accumulation of total flow value.
 4. Automatic water supply.
 Technical Parameters:
 1. Maximum head pressure difference: 250mmH₂O (2450Pa)
 2. Inner diameter of holder: Φ50±0.5mm
 3. Maximum thickness of sample: 20mm
 4. Large touch screen controls time display with a precision of 0-99.99s
 5. Thermometer range: 0~50℃ (accurate to 0.1℃)
 6. Graduated cylinder: 1000mL (precision 10mL)
 7. Power supply: AC220V±10% 50Hz
 8. Overall dimensions: 830×730×1830mm
 9. Weight: 95kg
