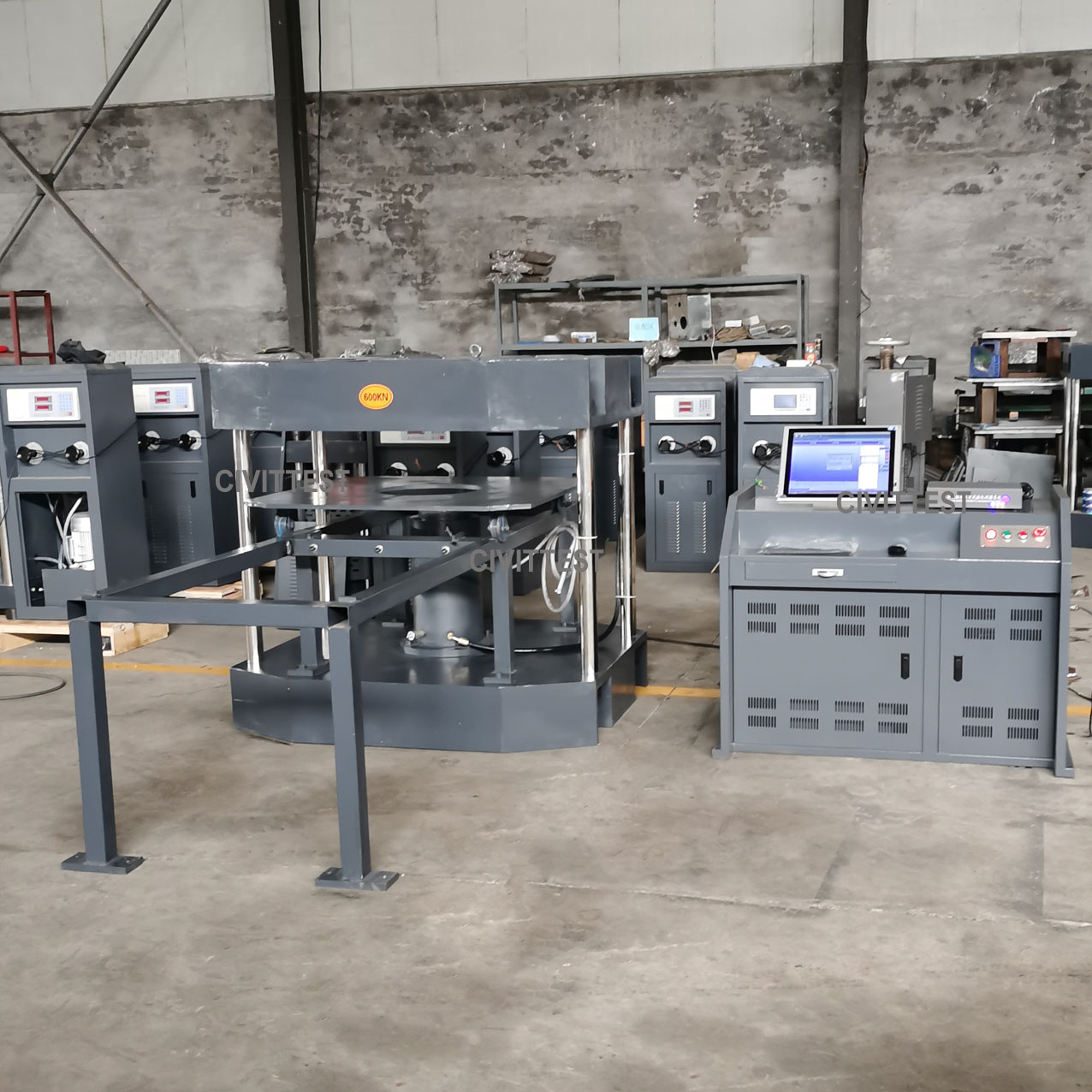

Manhole Cover Compression Testing Machine 600kn 1000kn

Maximum Test Force:600 kN

Accuracy Class:≥Class 1

Indication Relative Error:±1%

Effective Measurement Range:1%-100% F.S. (full scale without gear shifting)

Deformation Indication Relative Error:±1%

Deformation Measurement Resolution:0.001 mm

Maximum Compression Surface Spacing:250-300 mm

Effective Distance Between Two Columns:1200 mm

Piston Stroke:250-300 mm

Maximum Piston Moving Speed:120 mm/min

Platen Size:Φ300 mm (diameter)

Main Unit Overall Dimensions:1200 mm×1400 mm×1600 mm

Oil Source Cabinet Dimensions:980 mm×500 mm×1100 mm (subject to actual product)

Total Machine Power:Oil pump motor: 1.1 kW / 1.5 kW

Oil Source Cabinet Weight:150 kg
