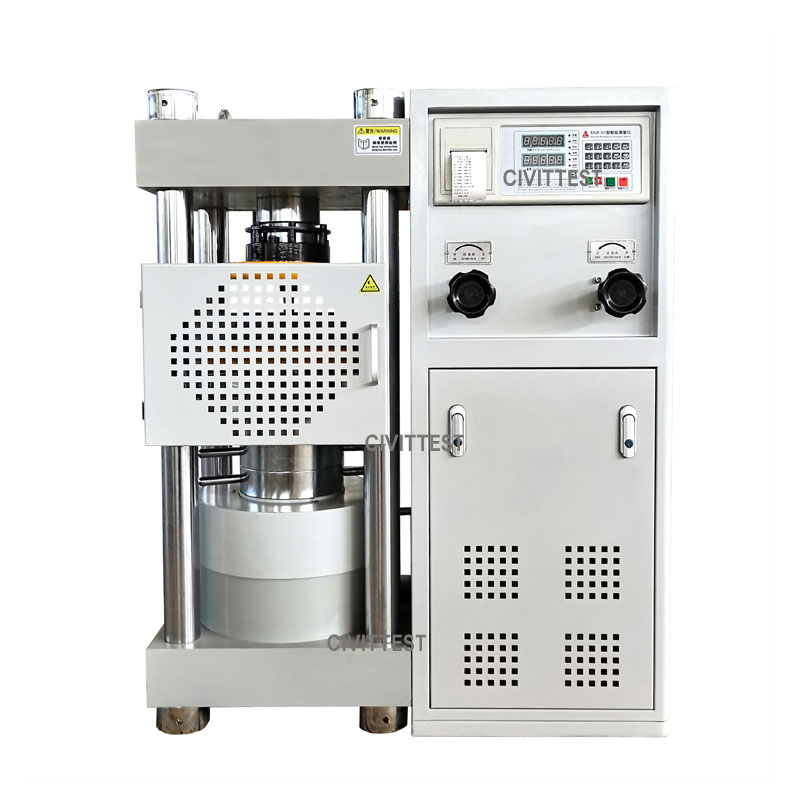

Digital Compression Testing Machine CT-D2000

Capacity: 2000KN
Relative indication error: ±1%
Up platen size: dia.250mm
Below platen size: 250x350mm
Vertical clearance: 320mm
Max. piston stroke: 80mm
Diameter of poiston: 250mm
Rated pressure of the hydraulic pump: 40Mpa
Piston rise speed: 50mm/min.
Piston back speed: 20mm/min.
Power motor: 0.75kw
Weight: 700kgs
Equip safety door.
Fix frame, with adding testing pad
