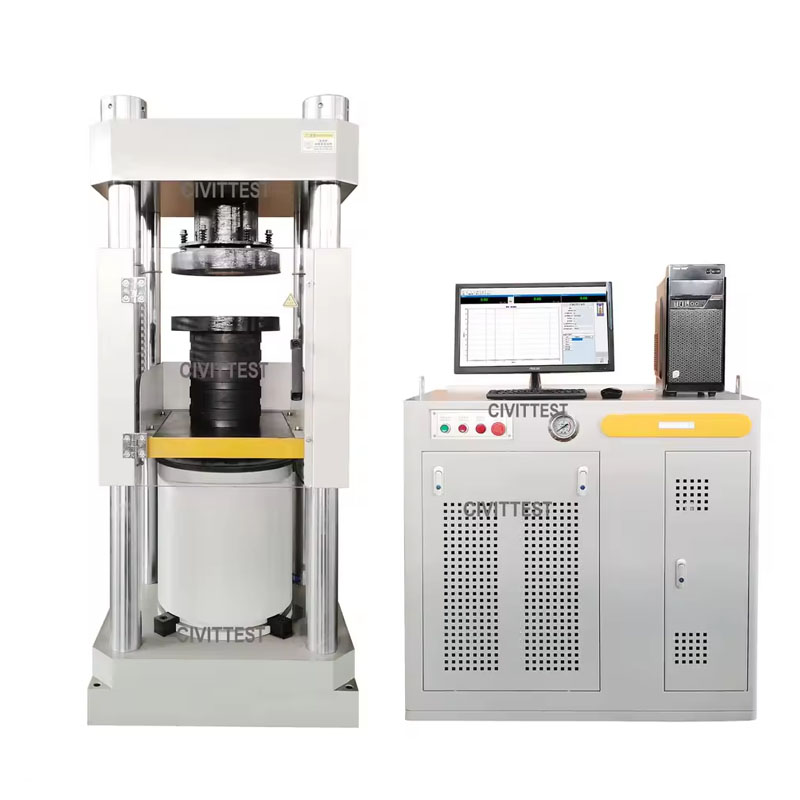

Capacity: 2000KN
Precision Grade: Grade 0.5 Grade 1
Column distance: 430mm
Up Platen size: Dia.300mm
Below Platen size: 300mm
Vertical clearance: 330mm (can produce to 360mm or 380mm)
Max. Piston stroke: 150mm
Piston diameter: 290mm
Power: AC380V/220V 50-60z
Motor power: 1.5KW
Main frame size: 550x420x1420mm
Control console size: 1100x630x940mm
Weight: 1500kg
PC Servo by high quality servo motor and servo system
High precision spoke type force transducer
High precision Loading 0.5Grade
Automatic Loading speed
Have Steel Big Frame production
High piston stroke
High stability brand intelligent system
